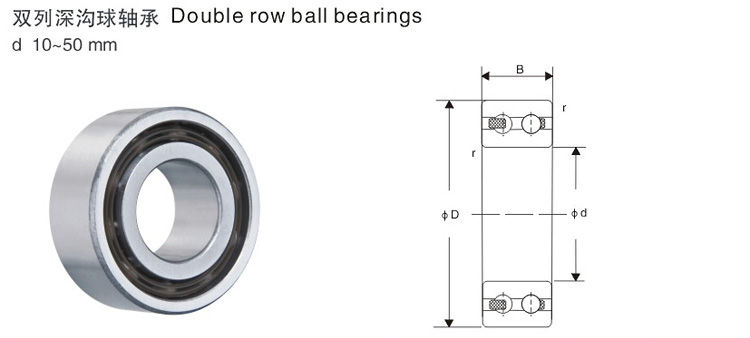

Double-Row Deep Groove Ball Bearing PRECISION BEARING

Click View Big PIC

Double-row Deep Groove Ball Bearing have deep uninterrupted raceways and high conformity between the balls and raceways.
They are able to carry axial loads acting in both directions in addition to radial loads.Double row deep groove ball bearings are
very suitable for bearing arrangements where the load carrying capacity of a single row bearing is inadequate. For the same
outside and bore diameters, double row bearings are slightly wider than single row bearings but have considerably higher load
carrying capacity than single row bearings in the 62 and 63 series.
Main dimensions(mm)				Basic static load rating Cor(N)	Basic static load rating Cor(N)	Reference quality(KG)	GJP Model
d	D	B	r	Basic static load rating Cor(N)	Basic static load rating Cor(N)	Reference quality(KG)	GJP Model
10	30	14	0.6	9230	5200	0.049	4200
10	35	17	0.6	14300	8900	0.091	4300
12	32	14	0.6	10600	6200	0.053	4201
12	37	17	1	13000	7800	0.092	4301
15	35	14	0.6	11900	7500	0.059	4202
15	42	17	1	14800	9500	0.120	4302
17	40	16	0.6	14800	9500	0.090	4203
17	47	19	1	19500	13200	0.160	4303
20	47	18	1	17800	12500	0.140	4204
20	52	21	1.1	23400	16000	0.210	4304
25	52	18	1	19000	14600	0.160	4205
25	62	24	1.1	31900	22400	0.340	4305
30	62	20	1	26000	20800	0.260	4206
30	72	27	1.1	41000	30000	0.500	4306
35	72	23	1.1	35100	28500	0.400	4207
35	80	31	1.5	50700	38000	0.690	4307
40	80	23	1.1	37100	32500	0.500	4208
40	90	33	1.5	55900	45000	0.950	4308
45	85	23	1.1	39000	36000	0.540	4209
45	100	36	1.5	68900	56000	1.250	4309
50	90	23	1.1	41000	40000	0.580	4210
50	110	40	2	81900	69500	1.700	4310
