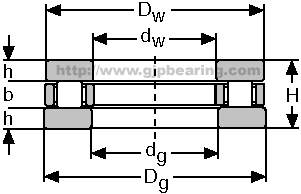

Thrust Roller Bearing PRECISION BEARING

Click View Big PIC

GJP Code	INA Code	Dimensions-inch size						Weight
GJP Code	INA Code	h	dw	dg	Dw	Dg	H	KGS
RT-7	RTL7	***	0.8750	0.8750	1.8437	1.8437	0.6250	0.136
RT-8	RTL8	***	0.9375	0.9375	1.8437	1.8437	0.6250	0.136
RT-9	RTL9	***	1.0000	1.0000	1.9687	1.9687	0.6250	0.136
RT-10	RTL10	***	1.0625	1.0625	1.9687	1.9687	0.6250	0.136
RT-11	RTL11	***	1.1250	1.1250	2.0937	2.0937	0.6250	0.272
RT-12	RTL-12	***	1.1875	1.1875	2.0937	2.0937	0.6250	0.136
RT-13	RTL13	***	1.2500	1.2500	2.3437	2.3437	0.6250	0.227
RT-14	RTL14	***	1.3125	1.3125	2.3437	2.3437	0.6250	0.227
RT-15	RTL15	***	1.3750	1.3750	2.4687	2.4687	0.6250	0.227
RT-16	RTL16	***	1.4375	1.4375	2.4687	2.4687	0.6250	0.227
RT-17	RTL17	***	1.5000	1.5000	2.5937	2.5937	0.6250	0.272
RT-18	RTL18	***	1.5625	1.5625	2.5937	2.5937	0.6250	0.227
RT-19	RTL19	***	1.6250	1.6250	2.9687	2.9687	0.8125	0.454
RT-20	RTL20	***	1.6875	1.6875	2.9687	2.9687	0.8125	0.454
RT-21	RTL21	***	1.7500	1.7500	3.0937	3.0937	0.8125	0.499
RT-22	RTL22	***	1.8125	1.8125	3.0937	3.0937	0.8125	0.454
RT-23	RTL23	***	1.8750	1.8750	2.2187	2.2187	0.8125	0.499
RT-24	RTL24	***	1.9375	1.9375	3.2187	3.2187	0.8125	0.499
RT-25	RTL25	***	2.0000	2.0000	3.3437	3.3437	0.8125	0.499
RT-27	RTL27	***	2.1250	2.1250	3.5937	3.5937	0.8125	0.590
RT-28	RTL28	***	2.1875	2.1875	3.5937	3.5937	0.8125	0.590
RT-29	RTL29	***	2.2500	2.2500	3.7187	3.7187	0.8125	0.635
RT-31	RTL31	***	2.3750	2.3750	3.8437	3.8437	0.8125	0.635
RT-32	RTL32	***	2.4375	2.4375	3.8437	3.8437	0.8125	0.635
RT-33	RTL33	***	2.5000	2.5000	3.9687	3.9687	0.8125	0.635
RT35	RTL35	***	2.6250	2.6250	4.3437	4.3437	1.0000	1.089
RT-37	RTL37	***	2.7500	2.7500	4.4687	4.4687	1.0000	1.089
RT-41	RTL-41	***	3.0000	3.0000	4.7187	4.7187	1.0000	1.134
RT-43	RTL43	***	3.2500	3.2500	4.9687	4.9687	1.0000	1.270
RT-44	RTL44	***	3.5000	3.5000	5.2187	5.2187	1.0000	1.361
Note:
Thrust roller bearing
Outer diameter of shaft washer and bore dimension of housing washer may vary between manufacturers.

WE SPECIALIZE IN PRODUCING ALL TYPE OF MOUNTED UNIT BEARINGS..
