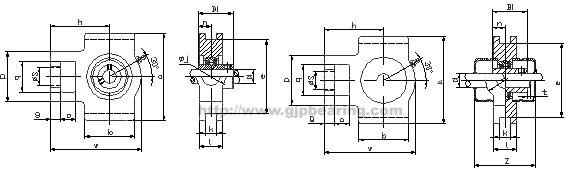

UCT200 PRECISION BEARING

Click View Big PIC

Bearing Unit NO.	Shaft Dia d		Dimensions(mm)																	Bearing No.	Housing No.	Weight(kg)
Bearing Unit NO.	(in)	(mm)	o	g	p	q	s	b	k	e	a	w	j	l	h	t	z	Bi	n	Bearing No.	Housing No.	Weight(kg)
UCT201-8 UCT202-9 UCT202-10 UCT203-11 UCT204-12 UCT201 UCT202 UCT203 UCT204	1/2 9/16 5/8 11/16	12 15 17 20	16	10	51	32	19	51	12	76	89	94	32	21	61	2	51	31	12.7	UC201-8 UC202-9 UC202-10 UC203-11 UC204-12 UC201 UC202 UC203 UC204	T204	0.56


UCT205-13 UCT205-14 UCT205-15 UCT205-16 UCT205	13/16 7/8 15/16 1	25	16	10	51	32	19	51	12	76	89	97	32	24	62	2	57	34.1	14.3	UC205-13 UC205-14 UC205-15 UC205-16 UC205	T205	0.63
UCT206-17 UCT206-18 UCT206-19 UCT206-20 UCT206	1-1/16 1-1/8 1-3/16 1-1/4	30	16	10	56	37	22	57	12	89	102	113	37	28	70	2	62	38.1	15.9	UC206-17 UC206-18 UC206-19 UC206-20 UC206	T206	0.95
UCT207-20 UCT207-21 UCT207-22 UCT207-23 UCT207	1-1/4 1-5/16 1-3/8 1-7/16	35	16	13	64	37	22	64	12	89	102	129	37	30	78	3	72	42.9	17.5	UC207-20 UC207-21 UC207-22 UC207-23 UC207	T207	1.09
UCT208-24 UCT208-25 UCT208	1-1/2 1-9/16	40	19	16	83	49	29	83	16	102	114	144	49	33	88	3	82	49.2	19	UC208-24 UC208-25 UC208	T208	1.72
UCT209-26 UCT209-27 UCT209-28 UCT209	1-5/8 1-11/16 1-3/4	45	19	16	83	49	29	83	16	102	117	144	49	35	87	3	82	49.2	19	UC209-26 UC209-27 UC209-28 UC209	T209	1.75
UCT210-29 UCT210-30 UCT210-31 UCT210-32 UCT210	1-13/16 1-7/8 1-15/16 2	50	19	16	83	49	29	86	16	102	117	149	49	37	90	3	87	51.6	19	UC210-29 UC210-30 UC210-31 UC210-32 UC210	T210	1.75
UCT211-32 UCT211-33 UCT211-34 UCT211-35 UCT211	2 2-1/16 2-1/8 2-3/16	55	25	19	102	64	35	95	22	130	146	171	64	38	106	4	92	55.6	22.2	UC211-32 UC211-33 UC211-34 UC211-35 UC211	T211	2.8
UCT212-36 UCT212-37 UCT212-38 UCT212-39 UCT212	2-1/4 2-5/16 2-3/8 2-7/16	60	32	19	102	64	35	102	22	130	146	194	64	42	119	4	102	65.1	25.4	UC212-36 UC212-37 UC212-38 UC212-39 UC212	T212	3.4
UCT213-40 UCT213-41 UCT213	2-1/2 2-9/16	65	32	21	111	70	41	121	26	151	167	224	70	44	137	4	107	65.1	25.4	UC213-40 UC213-41 UC213	T213	5
UCT214-42 UCT214-43 UCT214-44 UCT214	2-5/8 2-11/16 2-3/4	70	32	21	111	70	41	121	26	151	167	224	70	46	137			74.6	30.2	UC214-42 UC214-43 UC214-44 UC214	T214	4.7
UCT215-45 UCT215-46 UCT215-47 UCT215-48 UCT215	2-13/16 2-7/8 2-15/16 3	75	32	21	111	70	41	121	26	151	167	232	70	48	140			77.8	33.3	UC215-45 UC215-46 UC215-47 UC215-48 UC215	T215	5.1
UCT216-50 UCT216	3-1/8	80	32	21	111	70	41	121	26	165	184	235	70	51	140			82.6	33.3	UC216-50 UC216	T216	5.5
UCT217-52 UCT217	3-1/4	85	38	29	124	73	48	157	30	173	198	260	73	54	162			85.7	34.1	UC217-52 UC217	T217	7.4
UCT218-56 UCT218	3-1/2	90	40	30	130	80	48	140	30	190	215	275	80	55	170			96	39.7	UC218-56 UC218	T218	10.2

WE SPECIALIZE IN PRODUCING ALL TYPE OF MOUNTED UNIT BEARINGS..
