HCFLU200 PRECISION BEARING

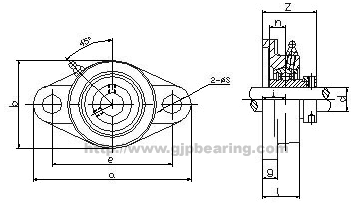

Click View Big PIC

Bearing Unit NO.	Shaft Dia d		Dimensions(mm)									Bolt Used		Bearing No.	Housing No.	Housing Wt (kg)
Bearing Unit NO.	(in)	(mm)	a	e	b	i	g	l	s	z	n	(in)	(mm)	Bearing No.	Housing No.	Housing Wt (kg)
HCFLU202-10 HCFLU203-11 HCFLU202 HCFLU203	5/8 11/16	15 17	99	76.5	57	15	11	25.5	11.5	38.4	13.9	3/8	M10	HC202-10 HC203-11 HC202 HC203	FLU203	0.59
HCFLU204-12 HCFLU204	3/4	20	112.5	90	61	19	15	29.5	11.5	45.5	17	3/8	M10	HC204-12 HC204	FLU204	0.59
HCFLU205-14 HCFLU205-15 HCFLU205-16 HCFLU205	7/8 15/16 1	25	123	99	70	19	15	30	11.5	45.9	17.4	3/8	M10	HC205-14 HC205-15 HC205-16 HC205	FLU205	0.65
HCFLU206-18 HCFLU206-19 HCFLU206-20 HCFLU206	1-1/8 1-3/16 1-1/4	30	142	116.5	82	20	16	32.5	11.5	50.1	18.2	3/8	M10	HC206-18 HC206-19 HC206-20 HC206	FLU206	0.94
HCFLU207-20 HCFLU207-21 HCFLU207-22 HCFLU207-23 HCFLU207	1-1/4 1-5/16 1-3/8 1-7/16	35	158	130	94	21	17	36	14	53.3	18.8	1/2	M12	HC207-20 HC207-21 HC207-22 HC207-23 HC207	FLU207	1.1
HCFLU208-24 HCFLU208-25 HCFLU208	1-1/2 1-9/16	40	172	143.5	103	24	17	39	14	58.9	21.4	1/2	M12	HC208-24 HC208-25 HC208	FLU208	1.16
HCFLU209-26 HCFLU209-27 HCFLU209-28 HCFLU209	1-5/8 1-11/16 1-3/4	45	180	148.5	108	24	18	40	16	58.9	21.4	1/2	M14	HC209-26 HC209-27 HC209-28 HC209	FLU209	1.58
HCFLU210-30 HCFLU210-31 HCFLU210-32 HCFLU210	1-7/8 1-15/16 2	50	190	157	114	28	20	45	18	66.1	24.6	5/8	M16	HC210-30 HC210-31 HC210-32 HC210	FLU210	1.62
HCFLU211-32 HCFLU211-34 HCFLU211-35 HCFLU211	2 2-1/8 2-3/16	55	217	184	128	31	21	48	18	74.6	27.7	5/8	M16	HC211-32 HC211-34 HC211-35 HC211	FLU211	2.4
HCFLU212-36 HCFLU212-38 HCFLU212-39 HCFLU212	2-1/4 2-3/8 2-7/16	60	237	202	138	34	21	53	18	80.8	30.9	5/8	M16	HC212-36 HC212-38 HC212-39 HC212	FLU212	3.2
HCFLU213-40 HCFLU213	2-1/2	65	256	210	152	38	22	56	21	89.6	34.1		M18	HC213-40 HC213	FLU213	4.05
HCFLU214-44 HCFLU214	2-3/4	70	264	216	157	38	23	58	21	89.6	34.1		M18	HC214-44 HC214	FLU214	4.17
HCFLU215-47 HCFLU215-48 HCFLU215	2-15/16 3	75	275	225	164	41	24	62	21	95.8	37.3		M18	HC215-47 HC215-48 HC215	FLU215	4.65

WE SPECIALIZE IN PRODUCING ALL TYPE OF MOUNTED UNIT BEARINGS..
