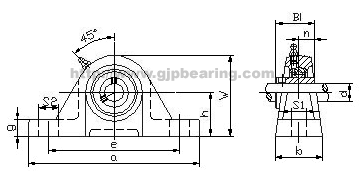

| UCPE200 PRECISION BEARING |
| BearingUint No. |
Shaft Dia d |
Dimensinons(mm) |
Bolt Used |
Bearing No. |
Housing No. |
Housing
Wt (kg) |
| h |
a |
e |
b |
S2 |
S1 |
g |
w |
Bi |
n |
(mm) |
(in) |
| (in) |
(mm) |
| UCPE201-8 |
1/2 |
|
30.2 |
124 |
95 |
31 |
15 |
11 |
14 |
57.1 |
26 |
10 |
M8 |
5/16 |
UCW201-8 |
PE203 |
0.45 |
| UCPE202-9 |
9/16 |
|
UCW202-9 |
| UCPE202-10 |
5/8 |
|
UCW202-10 |
| UCPE203-11 |
11/16 |
|
UCW203-11 |
| UCPE201 |
|
12 |
UCW201 |
| UCPE202 |
|
15 |
UCW202 |
| UCPE203 |
|
17 |
UCW203 |
| UCPE204-12 |
3/4 |
|
33.3 |
127 |
95 |
38 |
16 |
13 |
15 |
65 |
31 |
12.7 |
M10 |
3/8 |
UC204-12 |
PE204 |
0.65 |
| UCPE204 |
|
20 |
UC204 |
| UCPE205-13 |
13/16 |
25 |
36.6 |
140 |
105 |
38 |
16 |
13 |
16 |
70 |
34 |
14.3 |
M10 |
3/8 |
UC205-13 |
PE205 |
0.75 |
| UCPE205-14 |
7/8 |
UC205-14 |
| UCPE205-15 |
15/16 |
UC205-15 |
| UCPE205-16 |
1 |
UC205-16 |
| UCPE205 |
|
UC205 |
| UCPE206-17 |
1-1/16 |
30 |
42.9 |
165 |
121 |
48 |
21 |
17 |
18 |
83 |
38.1 |
15.9 |
M14 |
1/2 |
UC206-17 |
PE206 |
1.15 |
| UCPE206-18 |
1-1/8 |
UC206-18 |
| UCPE206-19 |
1-3/16 |
UC206-19 |
| UCPE206-20 |
1-1/4 |
UC206-20 |
| UCPE206 |
|
UC206 |
| UCPE207-20 |
1-1/4 |
35 |
47.6 |
167 |
127 |
48 |
21 |
17 |
19 |
94 |
42.9 |
17.5 |
M14 |
1/2 |
UC207-20 |
PE207 |
1.30 |
| UCPE207-21 |
1-5/16 |
UC207-21 |
| UCPE207-22 |
1-3/8 |
UC207-22 |
| UCPE207-23 |
1-7/16 |
UC207-23 |
| UCPE207 |
|
UC207 |
| UCPE208-24 |
1-1/2 |
40 |
49.2 |
184 |
137 |
54 |
25 |
17 |
19 |
100 |
49.2 |
19.0 |
M14 |
1/2 |
UC208-24 |
PE208 |
1.50 |
| UCPE208-25 |
1-9/16 |
UC208-25 |
| UCPE208 |
|
UC208 |
| UCPE209-26 |
1-5/8 |
45 |
54 |
190 |
146 |
54 |
25 |
17 |
20 |
108 |
49.2 |
19.0 |
M14 |
1/2 |
UC209-26 |
PE209 |
1.75 |
| UCPE209-27 |
1-11/16 |
UC209-27 |
| UCPE209-28 |
1-3/4 |
UC209-28 |
| UCPE209 |
|
UC209 |
| UCPE210-29 |
1-13/16 |
50 |
57.2 |
206 |
159 |
60 |
25 |
20 |
22 |
114 |
51.6 |
19.0 |
M16 |
5/8 |
UC210-29 |
PE210 |
2.35 |
| UCPE210-30 |
1-7/8 |
UC210-30 |
| UCPE210-31 |
1-15/16 |
UC210-31 |
| UCPE210-32 |
2 |
UC210-32 |
| UCPE210 |
|
UC210 |
| UCPE211-32 |
2 |
55 |
63.5 |
219 |
171 |
60 |
25 |
20 |
22 |
126 |
55.6 |
22.2 |
M16 |
5/8 |
UC211-32 |
PE211 |
2.60 |
| UCPE211-33 |
2-1/16 |
UC211-33 |
| UCPE211-34 |
2-1/8 |
UC211-34 |
| UCPE211-35 |
2-3/16 |
UC211-35 |
| UCPE211 |
|
UC211 |
| UCPE212-36 |
2-1/4 |
60 |
69.8 |
241 |
184 |
70 |
25 |
20 |
25 |
138 |
65.1 |
25.4 |
M16 |
5/8 |
UC212-36 |
PE212 |
4.00 |
| UCPE212-37 |
2-5/16 |
UC212-37 |
| UCPE212-38 |
2-3/8 |
UC212-38 |
| UCPE212-39 |
2-7/16 |
UC212-39 |
| UCPE212 |
|
UC212 |
| UCPE213-40 |
2-1/2 |
65 |
76.2 |
265 |
203 |
70 |
29 |
25 |
27 |
150 |
65.1 |
25.4 |
M20 |
3/4 |
UC213-40 |
PE213 |
4.77 |
| UCPE213-41 |
2-9/16 |
UC213-41 |
| UCPE213 |
|
UC213 |
| UCPE214-42 |
2-5/8 |
70 |
79.4 |
266 |
210 |
72 |
31 |
25 |
27 |
156 |
74.6 |
30.2 |
M20 |
3/4 |
UC214-42 |
PE214 |
5.30 |
| UCPE214-43 |
2-11/16 |
UC214-43 |
| UCPE214-44 |
2-3/4 |
UC214-44 |
| UCPE214 |
|
UC214 |
| UCPE215-45 |
2-13/16 |
75 |
82.6 |
275 |
217 |
74 |
31 |
25 |
28 |
163 |
77.8 |
33.3 |
M20 |
3/4 |
UC215-45 |
PE215 |
6.00 |
| UCPE215-46 |
2-7/8 |
UC215-46 |
| UCPE215-47 |
2-15/16 |
UC215-47 |
| UCPE215-48 |
3 |
UC215-48 |
| UCPE215 |
|
UC215 |
|
|
|
